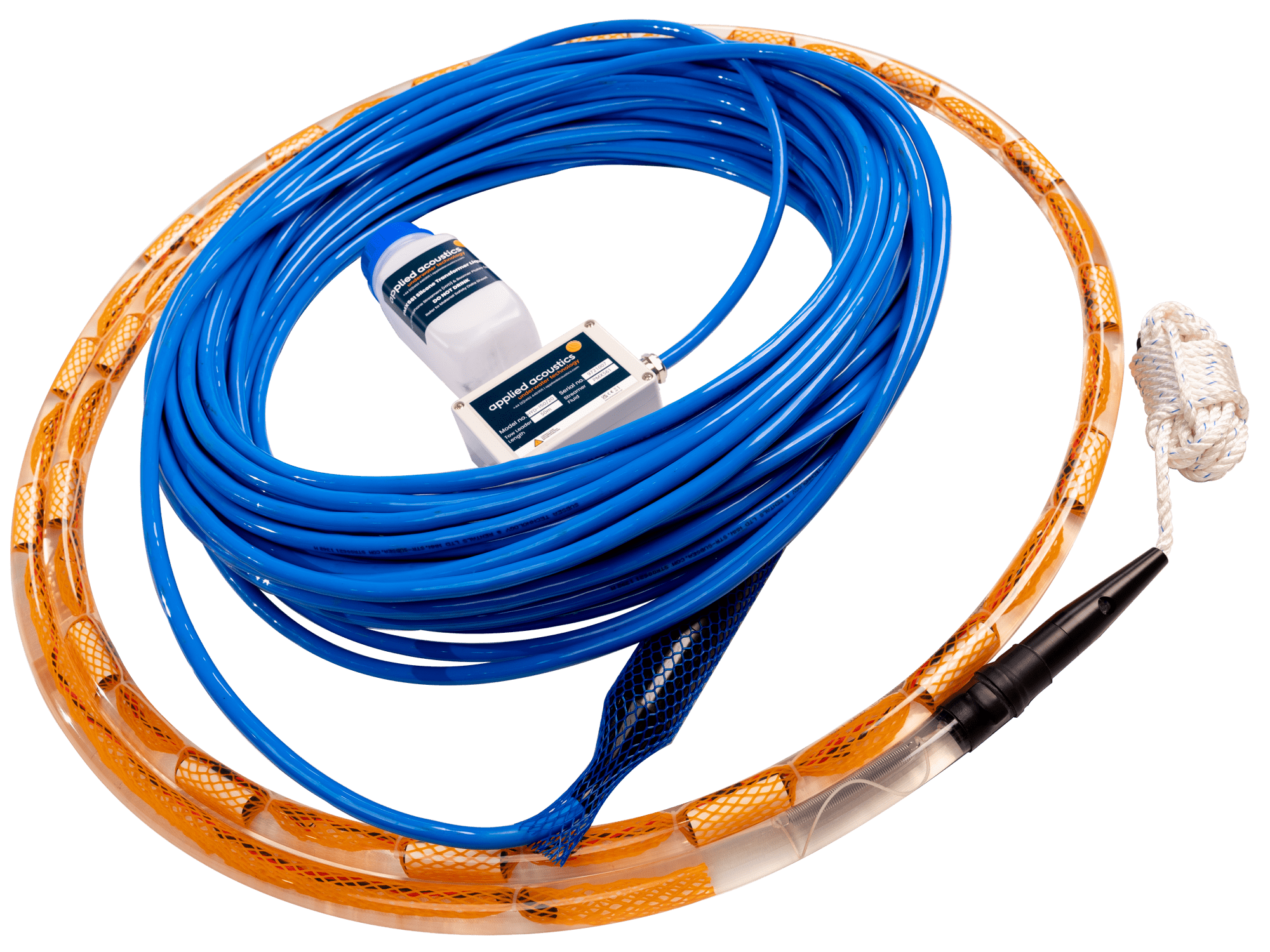

Applied Acoustic: Streamer Hydrophones
Unique Group provides Applied Acoustic’s high quality streamer hydrophones which are available as 1, 8, 12 or 20 element MF designs and 24 element LF design. Each hydrophone is supplied with a pre-amplifier and connectors for standard seismic acquisition systems.
Features
Filled with silicon oil for neutral buoyancy.
Supplied with a robust 50 m tow leader as standard.
Complete with pre-amplifier.
Standard models and customised units with grouped elements available.
Medium frequency and low frequency versions.
Specifications
Tow leader: 50 m (for models AH1, AH360/8, AH250/12, AH150/20, AH365/20, AH610/24LF).
Array tube type: Polyurethane (for models AH1, AH360/8, AH250/12, AH150/20, AH365/20, AH610/24LF).
Resonance: @ 9 kHz (for models AH1, AH360/8, AH250/12, AH150/20, AH365/20, AH610/24LF).
Array tube length: 4.5 m (for models AH1, AH360/8, AH250/12, AH150/20), 10 m (AH365/20), 14 m (AH610/24LF).
Connector type: BNC, 50/75 ohm cable can be used (for models AH1, AH360/8, AH250/12, AH150/20, AH365/20, AH610/24LF).
Applications
Used with either sparker or boomer systems and a digital acquisition system.
Seismic acquisition.
-
