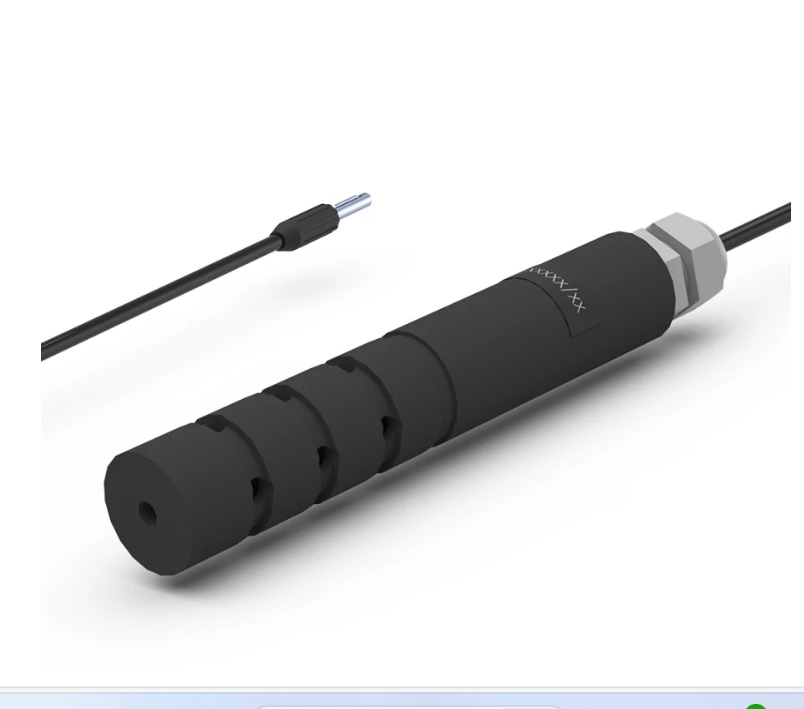

Buckleys: Marine Reference Cell Silver/Silver Chloride with 12.5m Cable
The Marine Silver/Silver Chloride Half Cell is suitable for installation on surface structures such as jetties.
It has been specially designed to allow easy monitoring when connected to a separate high impedance voltmeter (greater than 10 meg Ohm). The electrode is housed in a PVC body with holes to allow the easy flow of water around the electrode. The Half Cell is supplied with 12.5 m of CSP 55/015 cable. Other cables lengths can be supplied, if required, further details on request.
The cell is long lasting and will give a service life of up to 5 years in ideal conditions.
Features
Long cable length
Inert PVC body casing
Lightweight
Long service life
Specifications
Electrical connection: free end
Output: +42mV @ 25°C to K-Series reference cell
Accuracy: +/-10mV in 3% sea water.
Temperature coeff: -0.6mV/°C
Temperature range: 0-30°C
Applications
Installed on jetties.
Applicable for use in the marine industry.
-
