Buckleys: Saturated Glass Reference Cell

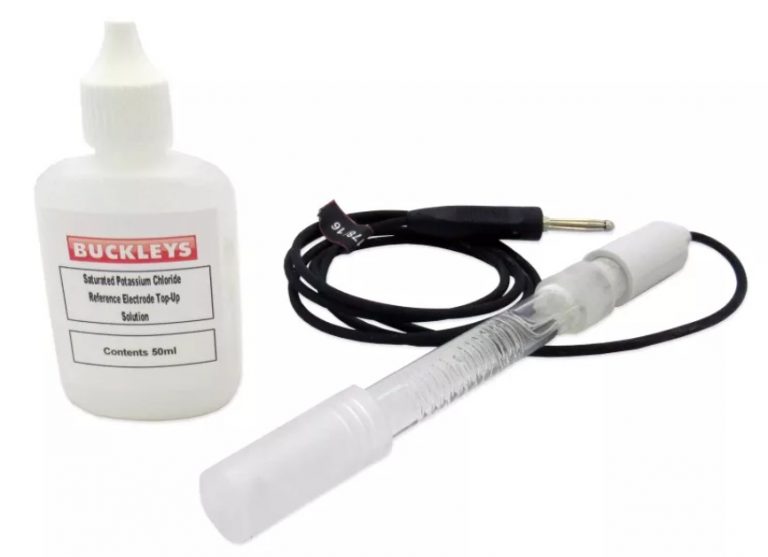

The laboratory type Saturated Glass Reference Cell is an environmentally friendly & easily-maintained replacement for calomel cells and may be used to check and verify the accuracy of K-cells and installed Half Cells.
It has been designed to be connected to a separate high impedance voltmeter (greater than 10 meg Ohm) via a one metre lead. The electrode is housed in a high resistance glass body and comes with a salt bridge solution for topping up.
The reference electrode will give a service life of several years if used in laboratory conditions and stored correctly.
Features
Long cable length (1 metre)
Glass body casing
Environmentally friendly vs calomel electrodes
Refillable
Long service life
Specifications
Electrical connection: 1 metre lead with 4mm plug
Output: +196mV @ 25°C vs Standard Hydrogen Electrode (SHE)
Accuracy: +/- 10mV @25°C vs SHE
Temperature coefficient: -0.64mV per °C
Temperature range: 0 – 40 °C
Applications
Used by surveyors
Suitable for marine industry
-
