Cygnus 4: General Purpose Ultrasonic Thickness Gauge
The Cygnus 4 General Purpose ultrasonic thickness gauge is a small, tough and accurate through coating digital thickness gauge. Designed for the harshest of environments with a simple to use keypad intuitive menus and a colour LCD display which can be viewed in all lighting conditions.
Features
Multiple-Echo for reliable accurate through coating measurements as specified by Classification Societies.
Large bright colour LCD screen with back light.
Deep-coat mode, measure through coatings up to 20mm thick.
Wrist mountable, Intuitive easy to use menu.
Min, Max measurement limit functions with visual and vibrate alert.
Specifications
Materials Velocities: from 1,000 – 9,000 m/s (0.0390 – 0.3543 in/us)
Accuracy: ±0.05 mm (±0.002”)
Resolution: 0.1 mm (0.005”) or 0.05 mm (0.002”)
Measurement Range in Steel: 1 – 250mm (0.040 in. – 10 in.) depending on selected probe and configuration, material and temperature
Connector: 1 x Lemo 1S Power 3 x AA / R6 batteries
Applications

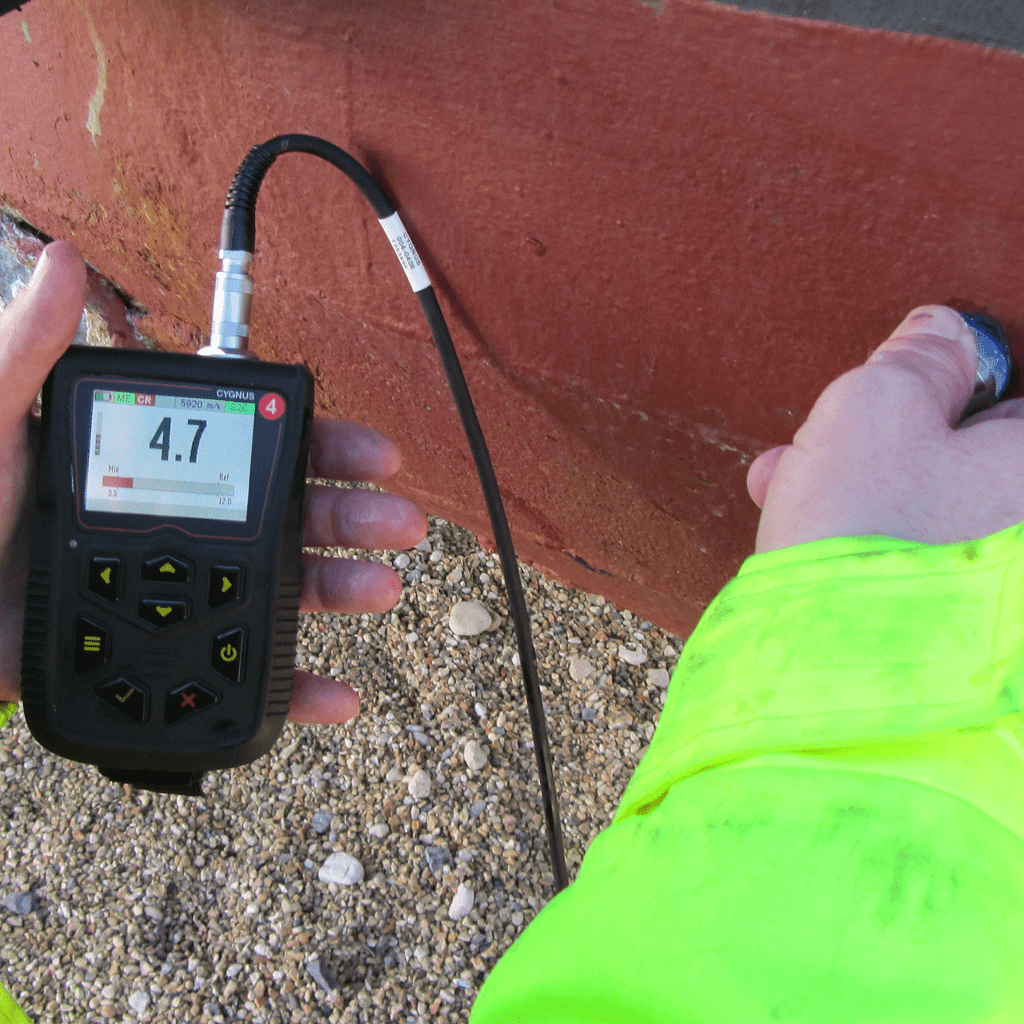

Ship surveys
Plant maintenance
Structural integrity inspection

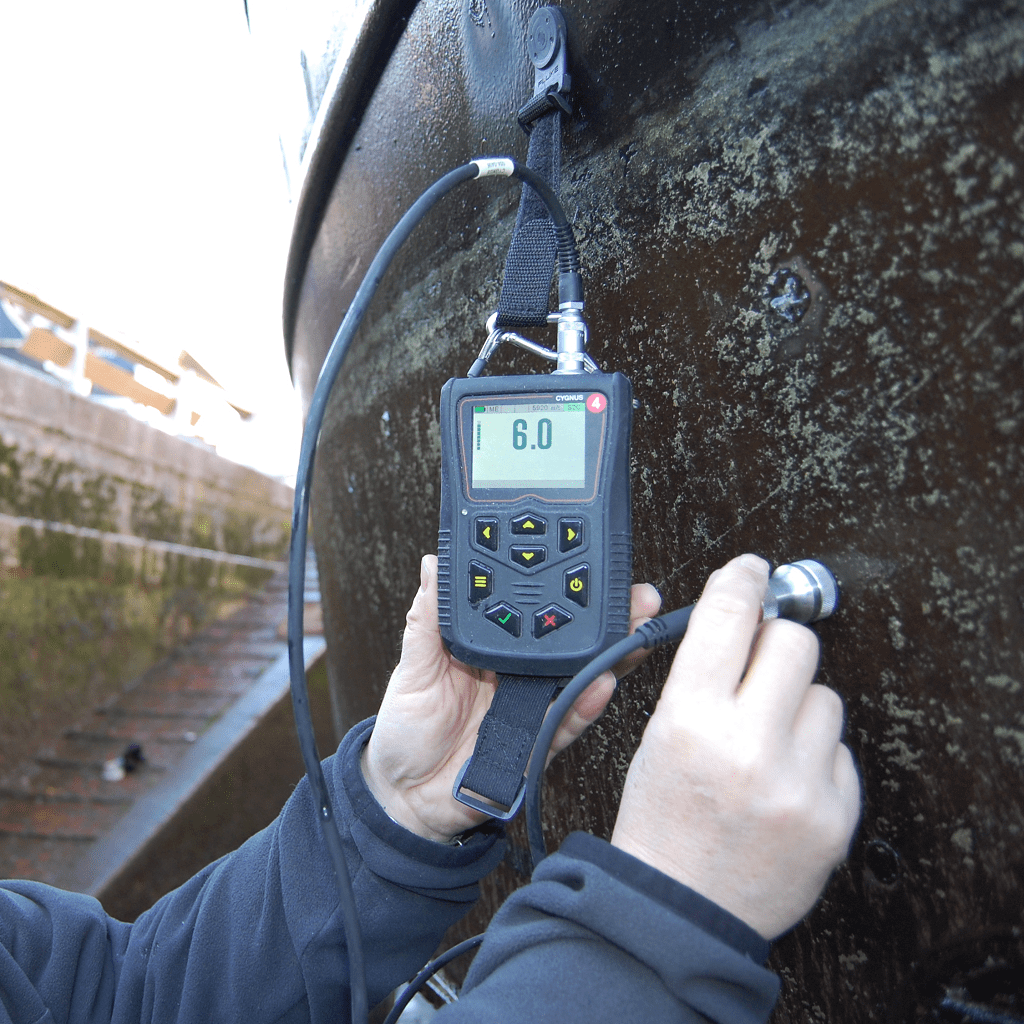

Marine inspections
-
