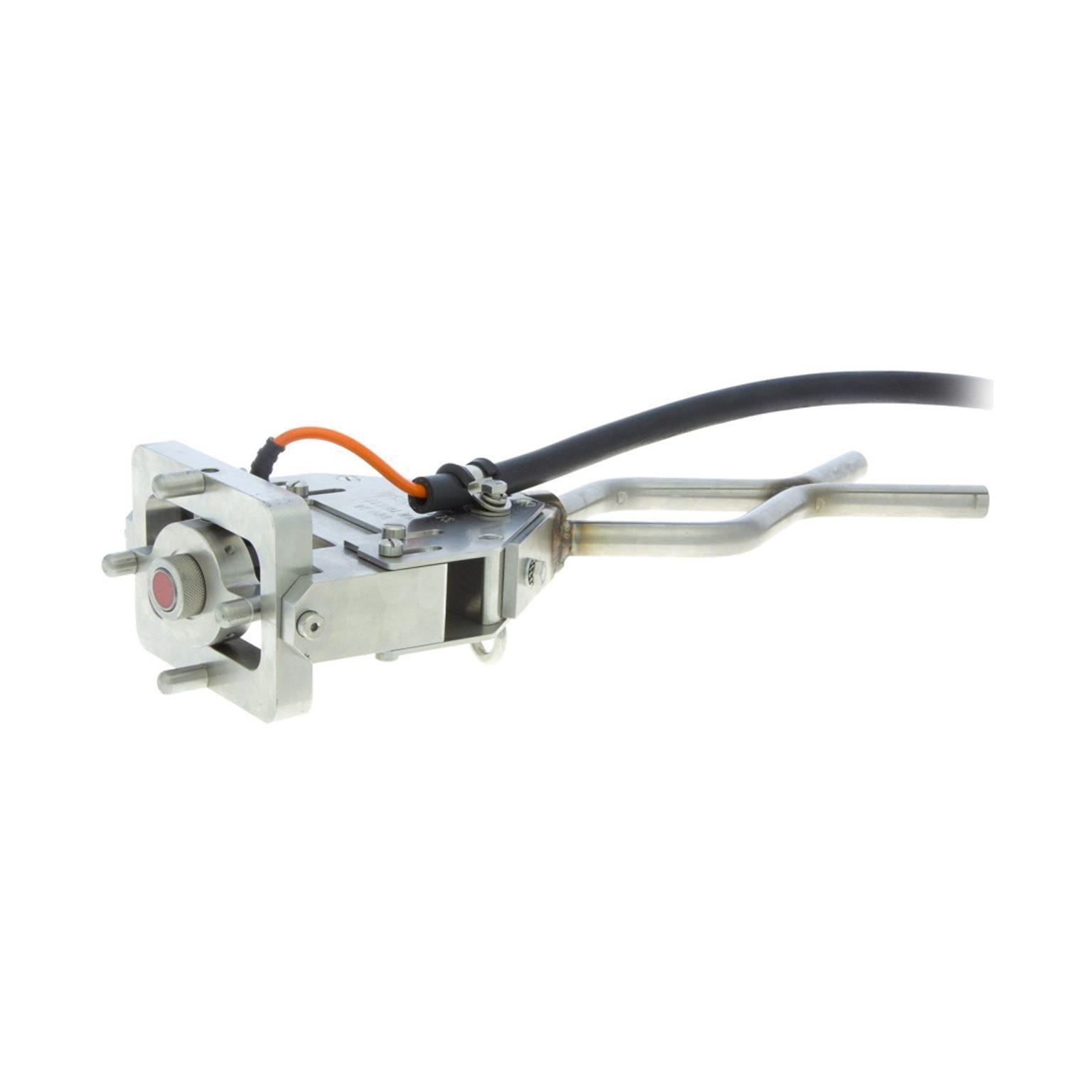

Cygnus W1: Work Class ROV Probe Handler
The Cygnus W1 Probe Handler is designed for use on Work Class ROVs. It can be held by a manipulator arm and supplied with either T bar or Fish Tail handles. It is constructed from 316 stainless steel throughout. Ultrasonic probe alignment is provided by a double jointed coupling that provides 15 degrees of movement in both planes guided by four pins.
Features
The W1 provides ultrasonic probe alignment via its double jointed coupling which allows 15 degrees of movement in both planes guided by four pins.
Utilising acoustic technology, this machine can measure the depth, position, and range of objects at the ocean’s bottom with high accuracy.
Light and sturdy
Has an ultrasonic probe alignment device.
Incorporates a shock absorbing spring to reduce the loading impact.
Specifications
Size: 170 x 150 x 90 mm (6.7” x 6” x 3.5”) excluding handle
Weight in air: 5 Kg (11 lbs)
Depth rating: 3000 MSW
Material: 316 Stainless Steel
Spring Force: 15 Kg spring starts to compress Probe Types 2.25 MHz 13mm with Membrane (3.5 MHz & 5MHz at special request)
Applications
Suitable for use on a wide range of work class ROVs.
-
