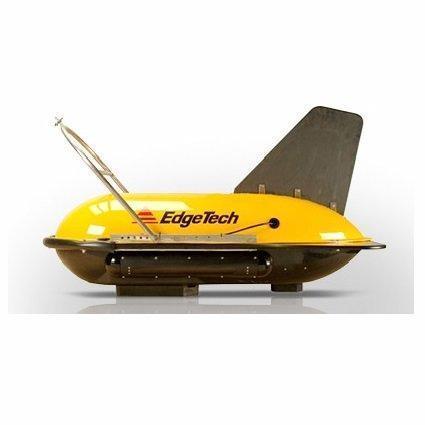

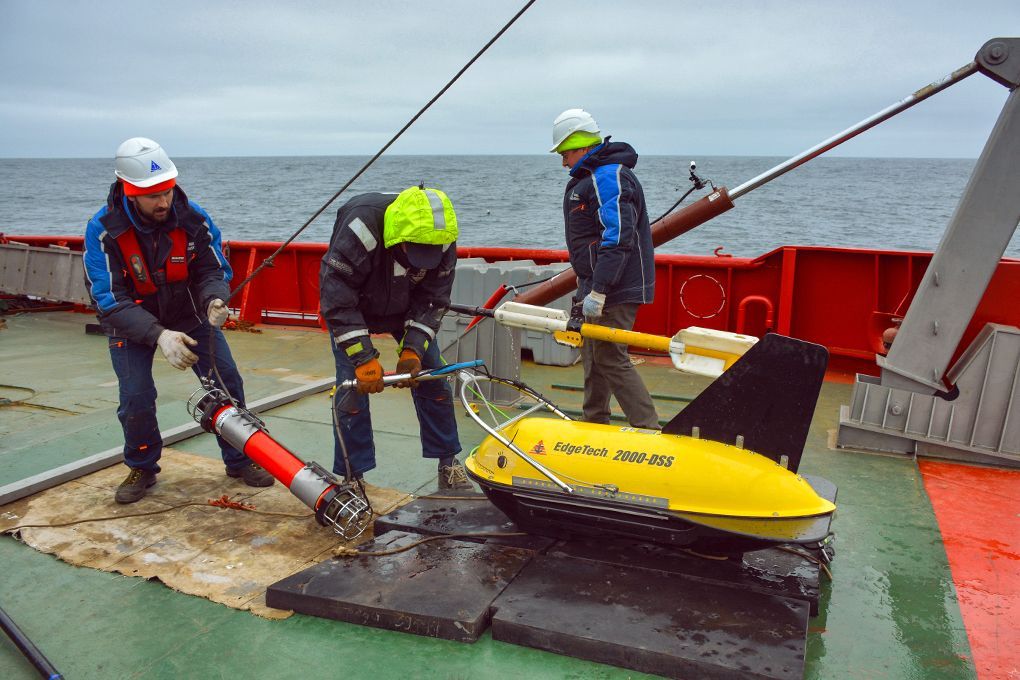

EdgeTech 2000DSS: Combined Side Scan Sonar & Sub-Bottom Profiler
Unique Group offers Edgetech’s 2000 DSS, an integrated system that collects both side scan and sub-bottom data with EdgeTech’s proprietary full spectrum CHIRP technology in water depths of up to 2000 metres. The system can be integrated with a number of auxiliary sensors such as magnetometer, depth, altitude and USBL responders.
Features
Fully integrated turnkey system.
Digital telemetry over single coaxial tow cable up to 6,000 m.
Choice of side scan and sub-bottom frequencies.
Built-in heading, pitch and roll sensors.
Modular design allows easy integration on to ROV.
Specifications
Frequency: 100/400 kHz or 300/600 kHz available
Sub-Bottom Profiler Frequency: 2-16 kHz available
Towfish Length x Width: 145 cm x 74 cm.
Depth Rating: 2000 metres.
Resolution: 6-10 cm.
Applications
Marine construction and pre/post dredging surveys.
Route surveys and sediment classification.
Archaeological, geological/geophysical surveys.
Scour and erosion surveys.
Cable and pipeline surveys.
-
