Green Pin®: Turnbuckles
Unique Group offers the full range of Green Pin Turnbuckles. The Green Pin Polar® JJ Turnbuckle BN is a grade 8 turnbuckle with jaw-jaw end-fittings and a safety bolt, generally to ASTM F1145-92. The turnbuckle can be used in extreme climatic conditions, down to -40°C (-40°F). One of the unique features of Green Pin® Turnbuckles such as this one is that they can be used for both lifting and lashing. The turnbuckle also offers a double safety (cotter pin and safety bolt) which prevents accidental unscrewing of the pin. The Green Pin Polar® JJ Turnbuckle BN is available in a range with a diameter thread 1/2″ (take up of 12″) up to 1 3/4″ (take up of 18″). Other turnbuckle types are available within the Green Pin range.
Features
Can be used for both lifting and lashing
Perfect for use in low-temperature situations (down to -40°C / -40°F)
Double safety (cotter pin & safety bolt)
Galvanization assures long-term durability
Specifications
Material: Drop forged alloy steel, Grade 8, quenched and tempered
Safety factor: MBL equals 5 x WLL
Finish: Hot dipped galvanized
Temp. range: -40°C up to +200°C
Certification: 2.1 2.2 3.1 MTCa CE
Standard: Generally to ASTM F1145-92, formerly U.S. Federal Specification FF-T-791b
Application

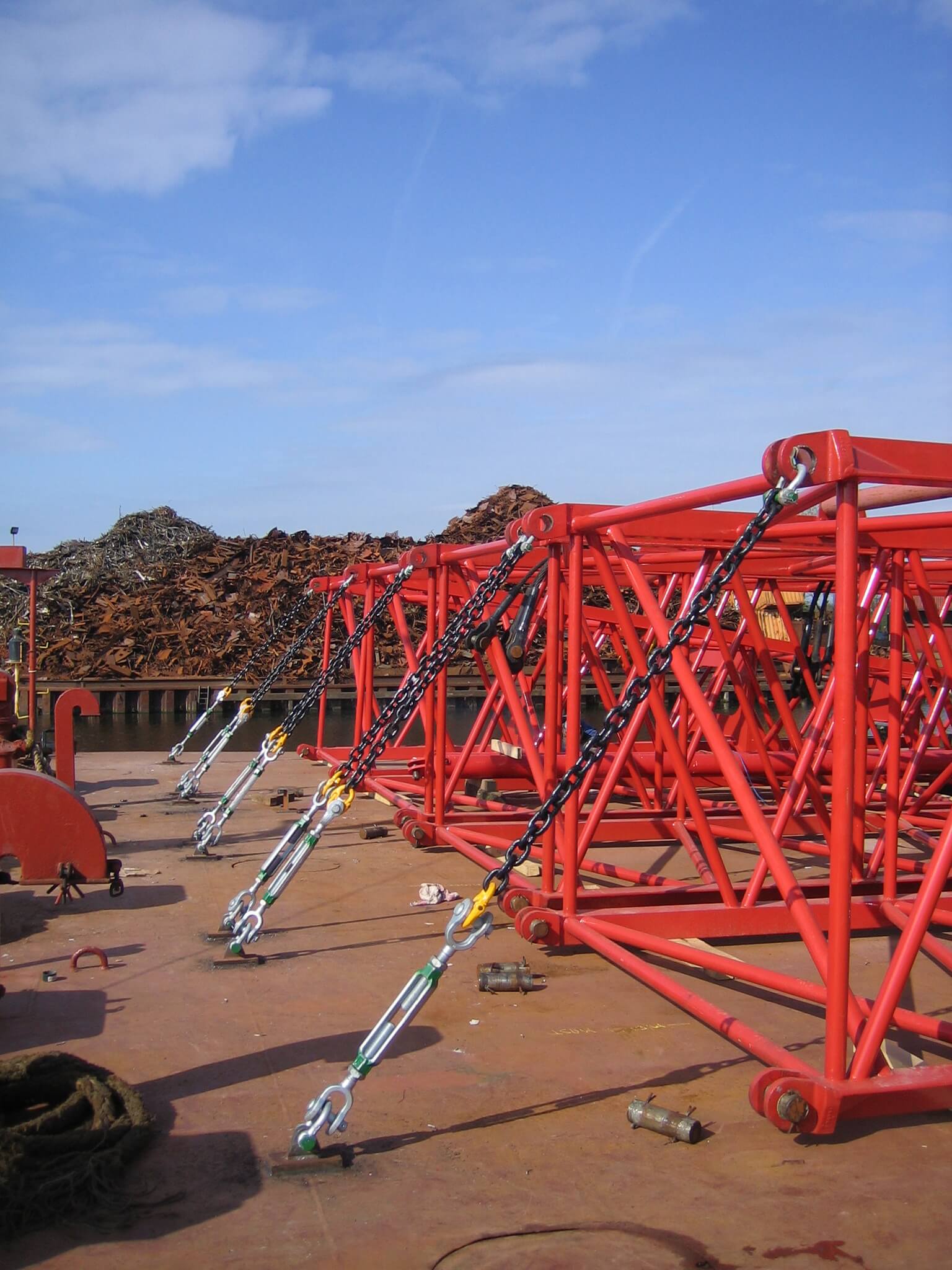

Lifting
Mooring
Towing
Fishing
Industrial
