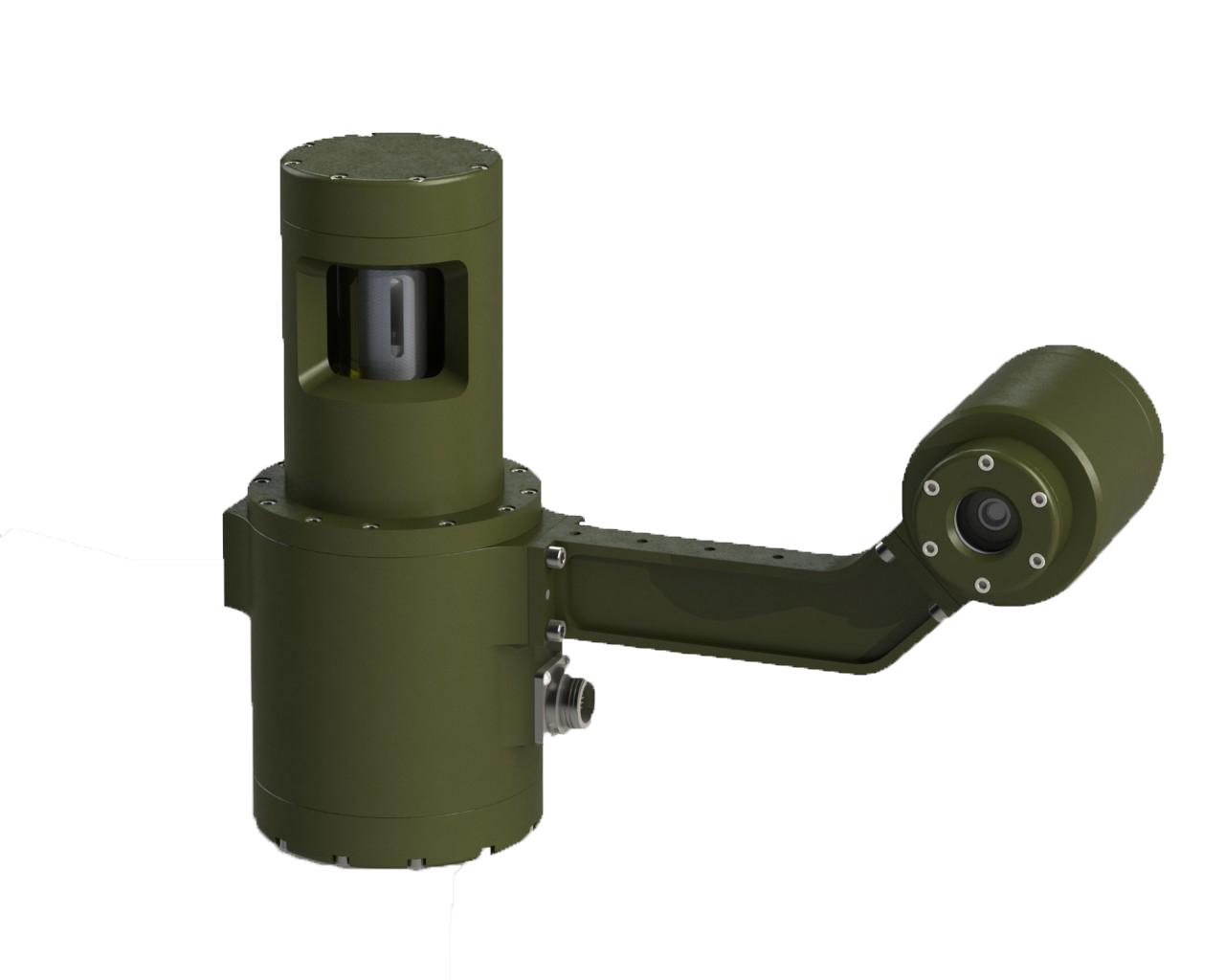

Newton Labs M3200UW: Lidar Subsea Laser Scanner

Availability: ,
Download Data Sheet download download

Add to Basket

The Newton M3200UW Lidar is a 3200m rated Underwater Laser Scanners capable of capturing sub-millimeter measurement for subsea metrology and IRM analysis. It can operate with a fixed laser line and IMU data as well as the standard internal high resolution scanning.

Features

Depth rated up to 3200m

Captures data up to 5 metres from target

Live camera view allows operator to achieve maximum productivity

Produces standard point clouds easily converted to CAD in any post processing software

Combine multiple scans into comprehensive CAD model

Specifications

Measurement range: Up to 5m

ROV/AUV power requirements: Requires 24v at less than 1 amp and Gig Ethernet MUX Compatible

Cable: With flying leads or connector as specified

Weight: 25lbs in air, 15 lbs in water

Control unit weight: 56 lbs (25 kg)

Applications

IRM analysis

Underwater surveying
