Sonardyne iWAND 6G: Hand Held Test Equipment

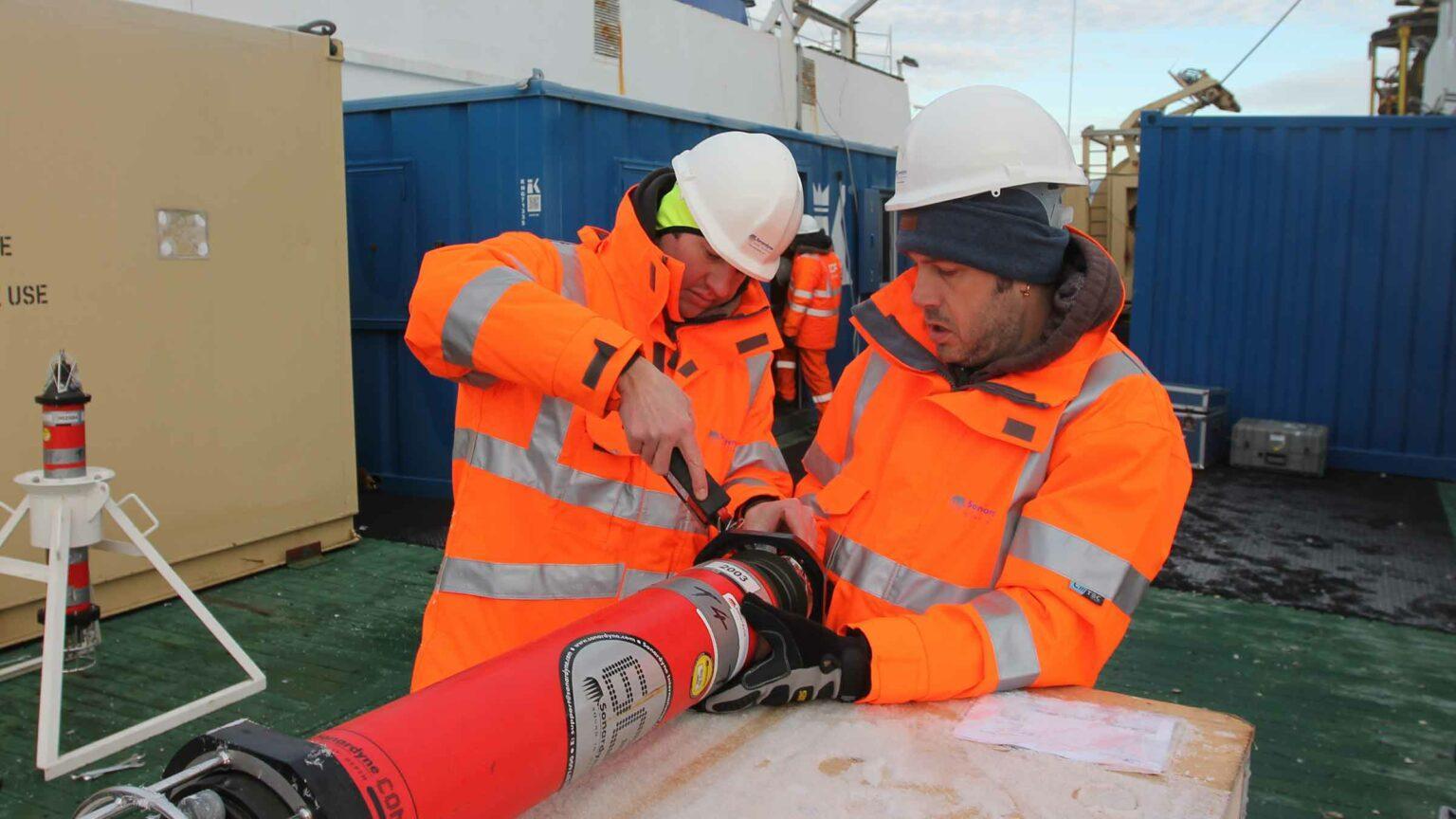

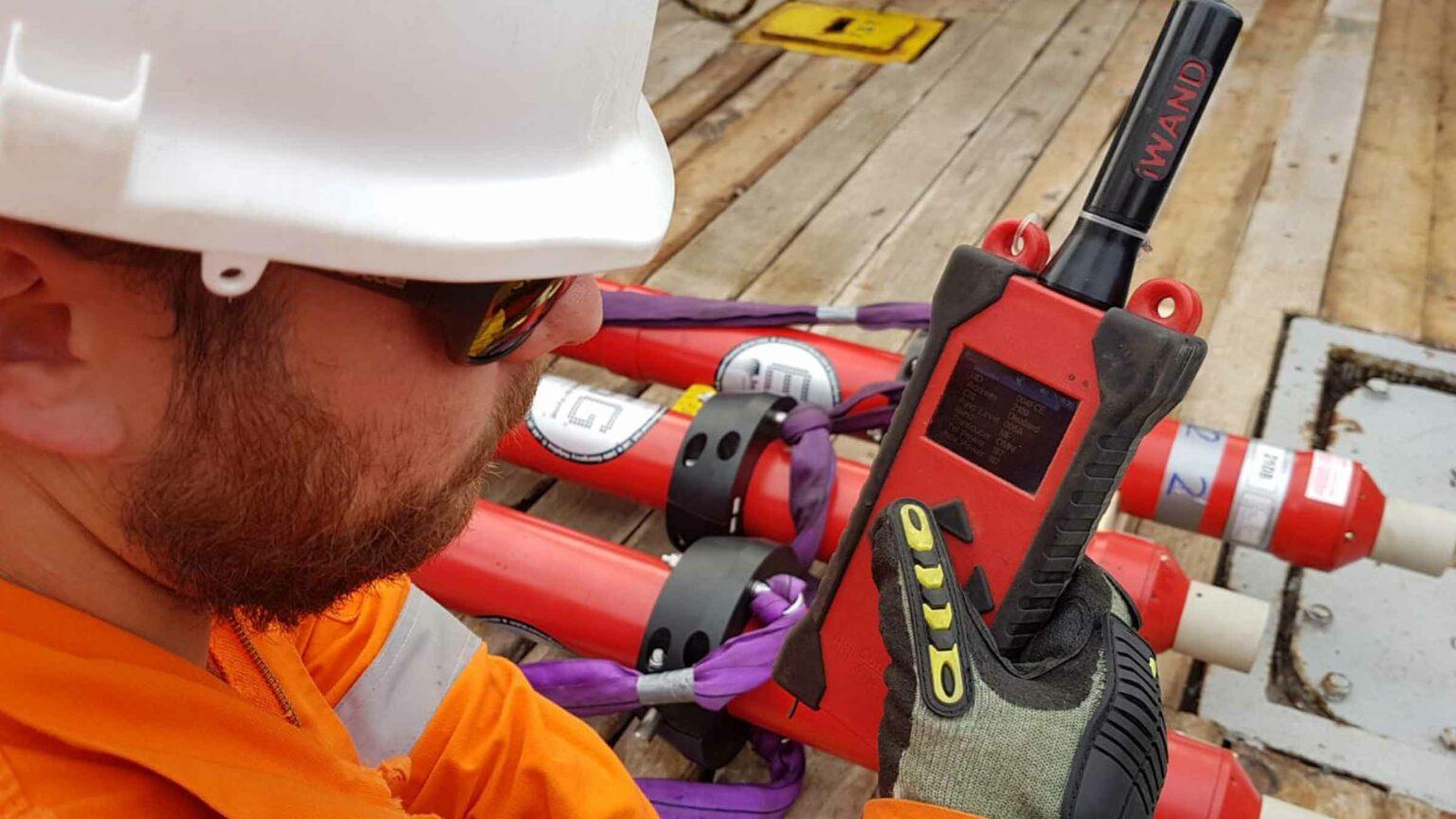

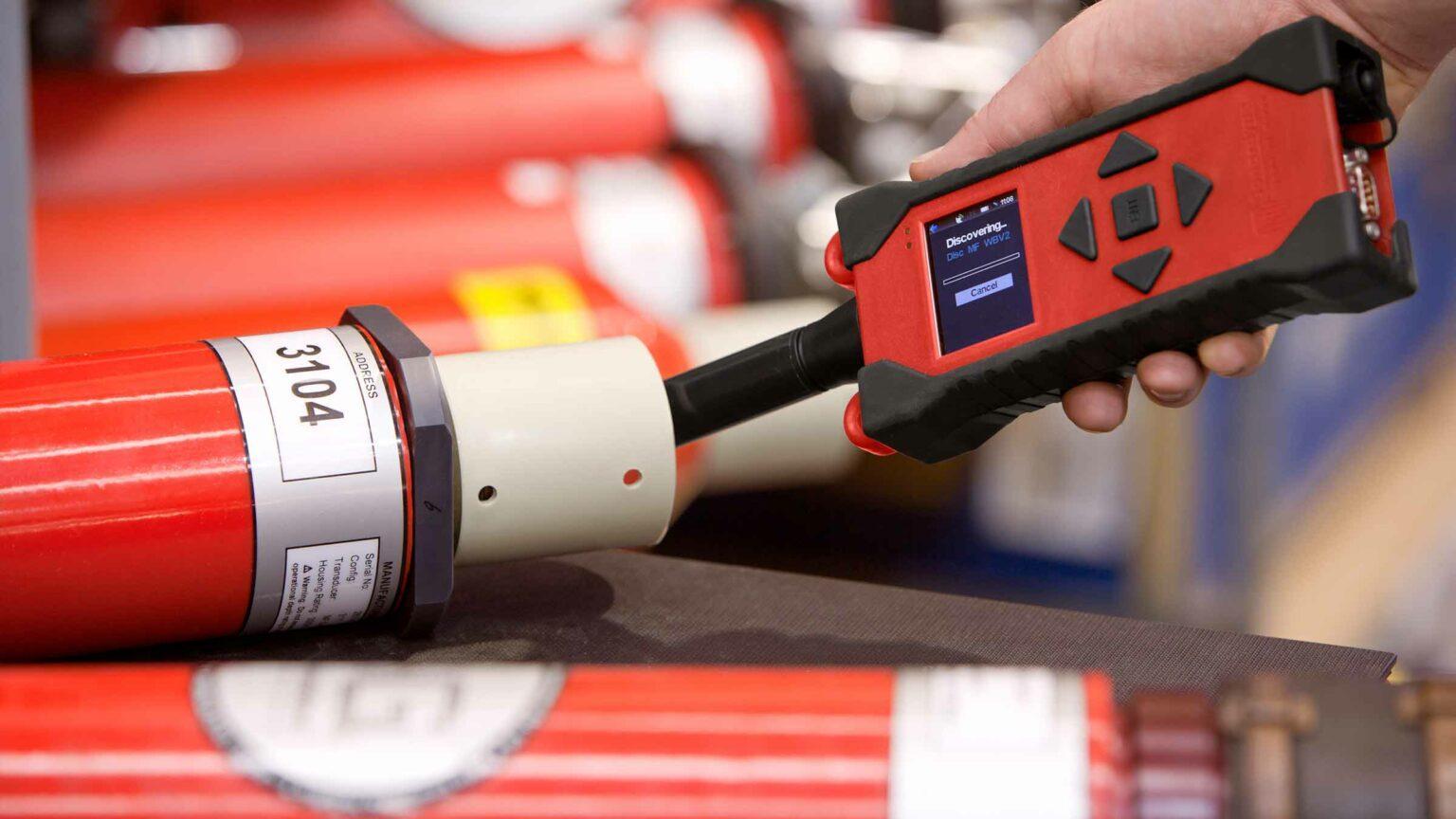

Unique Group in collaboration with Sonardyne offers the iWAND which is a hand held acoustic transponder test and configuration device developed for use with Sonardyne?s 6G product range. Being small, rugged and splash proof means the iWAND 6G is ideal for setting up equipment in the workshop, on the back deck of a ship, or on ROVs and subsea structures before they are deployed.
Features
Handheld battery powered highly portable design
Sunlight readable display
Automatically discovers the acoustic address of the instrument
Speeds up pre-deployment checks – allows batch settings to be uploaded
All communication via the easily accessible acoustic transducer and increase confidence in the instrument under test
Specifications
Operating frequency: LMF (14-19kHz), MF (18?36kHz), HMF (34-40kHz)
Transducer beam shape (wand): Directional
Dimensions: (LxDia) 276 mm (L) x 84 mm (W) x 40 mm (D)
Weight in air: 0.8 kg
Case: Rugged polypropylene copolymer case with styrenic over mould shock protection
Applications
Used for pre-deployment checks of equipment on vessels
Suitable for QC checks in the workshop
-
Sonardyne Dunker 6: LBL and Telemetry Transceiver
Survey Equipment -
AAE 1019: Mini Beacon
Survey Equipment -
Sonardyne ROVNav 6: LBL Transceiver and USBL Responder
Survey Equipment -
Sonardyne Gyro Compatt 6+: LBL Transponder with Integrated Gyro
Survey Equipment -
Sonardyne WSM 6+: Wideband Sub-Mini Transponder/Responder
Survey Equipment -

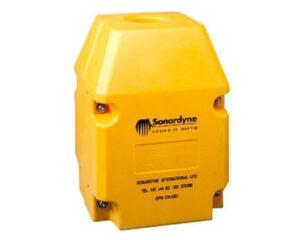

Sonardyne: Compatt/DPT Transponder Flotation Collar
