Tritech: Gemini 1200ik
Availability:
Sale

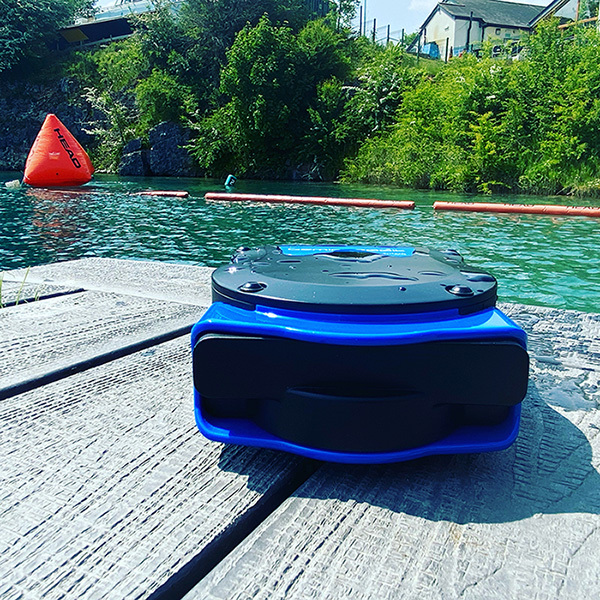

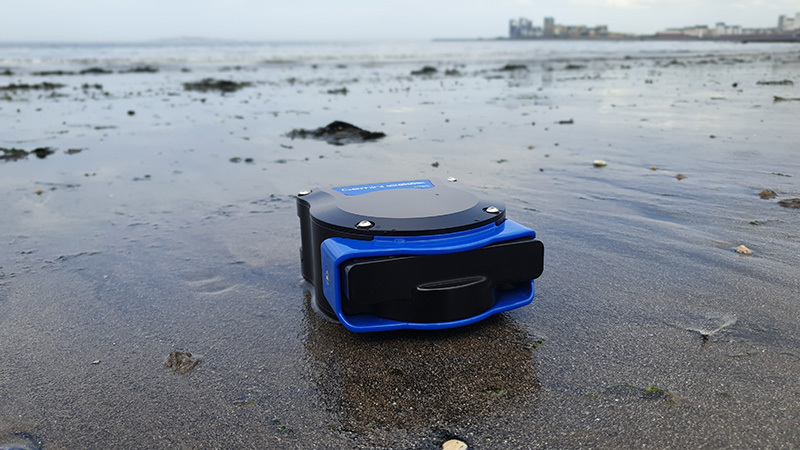

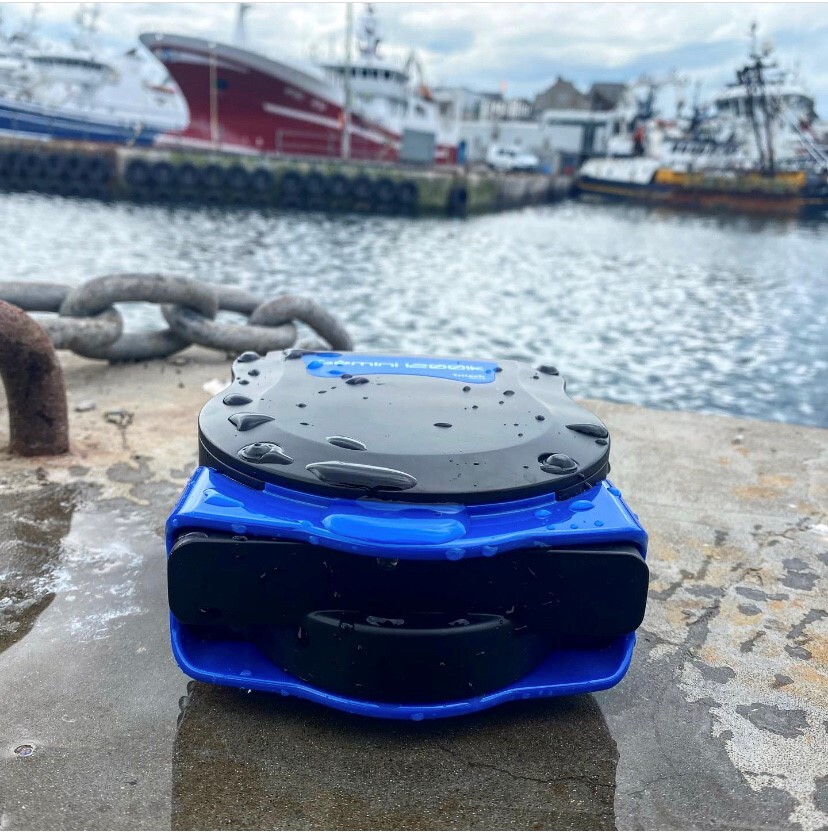

The Gemini 1200ik multibeam imaging sonar is a powerful addition to the popular Gemini range. The multibeam imaging sonar offers two operational frequencies with the ability to switch between low and high frequency dependant on the user’s requirement. Switching frequencies can be set to automatically switch over at a specific range or done manually.
Features
Real-time updates for video-like imagery
120° field of view
CHIRP processing
Integrated velocimeter for accurate ranging
Software development kit available
Specifications
| Availability |
|---|
Specifications
Operating frequency: Low Frequency – 720kHz, High Frequency – 1200kHz
Range: Low Frequency (0.1m – 120m / 4in – 394ft), High Frequency (0.1m – 50m / 4in – 164ft)
Weight in air: 1.46kg / 3.22lbs
Weight in water: 0.44kg / 0.97lbs
Supply voltage: 19V to 74V DC
Applications
Switch between 720kHz and 1200kHz
Long range object detection
Short range detailed imaging
Compact and easy to install
350m depth rating
Product Enquiry
Related products
-
Sound Metrics ARIS AR2: Rotator
Survey Equipment -
Imagenex 837A Delta T: Multibeam Profiling Sonar
Survey Equipment -
Tritech Gemini 720is: Real Time Multibeam Imaging Sonar
Survey Equipment -
Tritech Gemini 620pd: Multibeam Profiling Sonar
Survey Equipment -
Tritech Super SeaKing DFP: Dual Frequency Profiling Sonar
Survey Equipment -
Kongsberg Mesotech M3 Sonar: Multibeam Sonar Head
Survey Equipment -

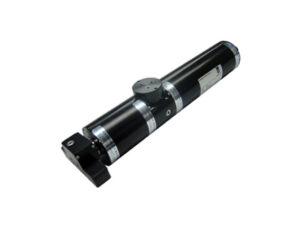

Kongsberg MS1000: Sonar Processing Software
