UG: Uni-Count 14″ & 20″

Availability: ,
Download Data Sheet download download

Add to Basket

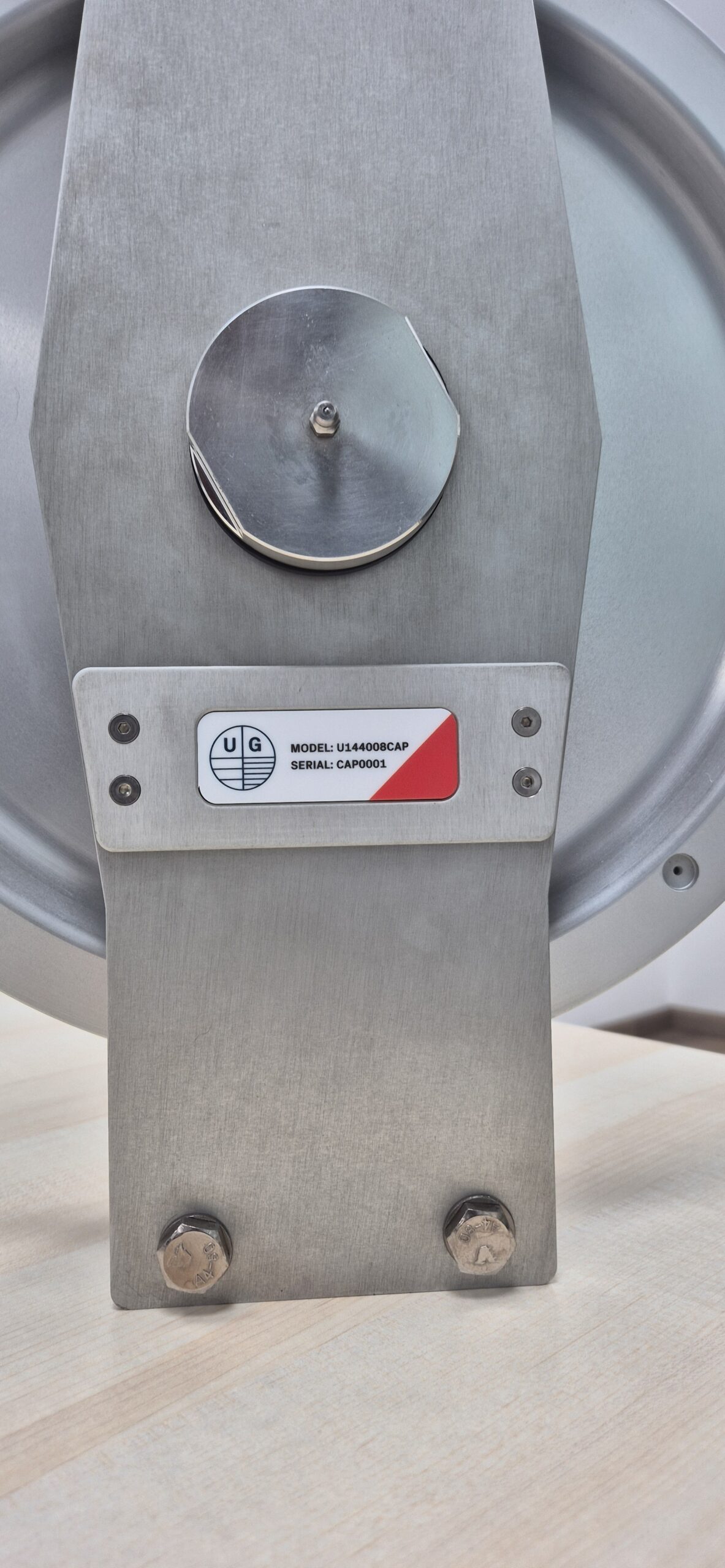

Developed by Unique Group to meet the demand for increased back deck survey equipment, the Uni-Count is a reliable and
accurate system for measuring the cable passing over the wheel.

Developed to help Oceanographers, Hydrographers and Surveyors who require an accurate measurement of deployed cable
in conjunction with applications including Side Scan Tow Fish, Magnetometers, ROVs, CTD Systems, Undulating Towed Vehicles, Sub-bottom Profilers, etc.

Features

Alpha-numeric LCD display

High Resolution & Accuracy

Addressable up to 8 counters

RS232 communication ports + USB port

Custom OFFSET and RESET of Cable length

Specifications

Strong Aluminum Alloy (Anodized) with SS316L fittings

Height: 677 mm (14″ Block), 817 mm (20″ Block)

Sheave Wheel Diameter: 356 mm and 508 mm

Overall width is 158 mm

Weight: 20 kgs (14″) and 25 kgs (20″)

Applications

Side Scan Tow Fish

ROVs

CTD Systems

Undulating Towed Vehicles

Sub-bottom Profilers
