UG: Uni-PPS Splitter

Download flyer download download

Add to Basket

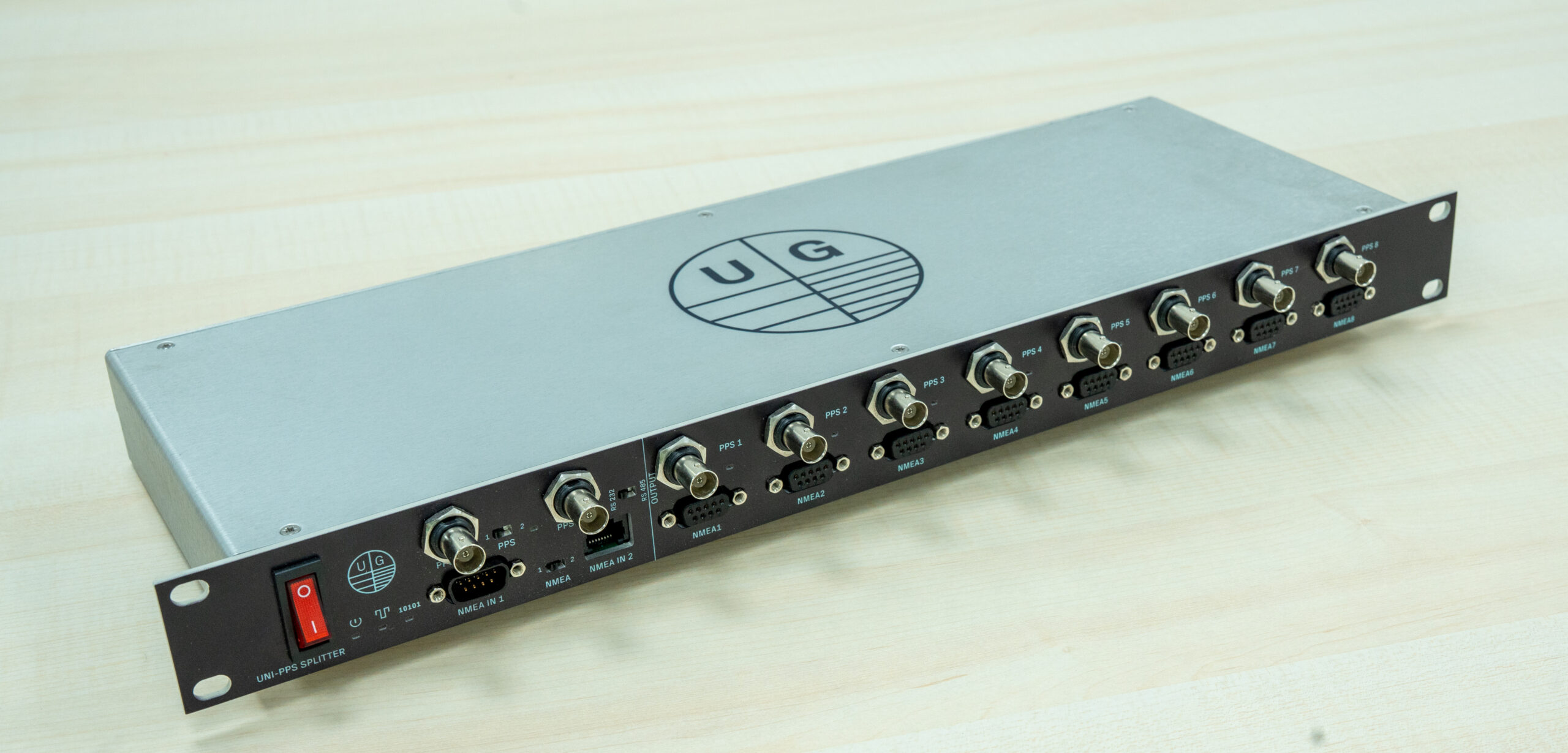

The Uni-PPS Splitter is a PPS and NMEA signal splitter, having a wide range of applications in the Hydrographic Survey field. It allows time synchronization of multiple acoustic systems and logging systems.

The system consists of a RS232/RS422/RS485 splitter combined with a PPS pulse splitter. The RS232/RS422/RS485 can support baud rates up to 115kbps. The PPS triggering is user selectable between Positive or Negative edge.

Features

NMEA (RS232 & RS422/485) and PPS

Galvanic Isolation between all inputs/outputs

1 in 8 output ports each (NMEA and PPS)

Standard 19” rack mountable

RS232 & RS422/485 user selectable

Specifications

Applications

Dimensions: 437mmx 141.5mm

Weight: 1.5Kgs

Inputs: 1 x PPS (BNC); 1 x RS232/RS422/RS485 (DB9)

Outputs: 8 x PPS (BNC); 8 x RS232/RS422/RS485 (DB9)

Input Power: 110-240 AC (50/60 Hz)

Applications

Time synchronization of sensors and logging systems
