Unmanned Surface Vessels

UG: Uni-Mini

Availability: ,

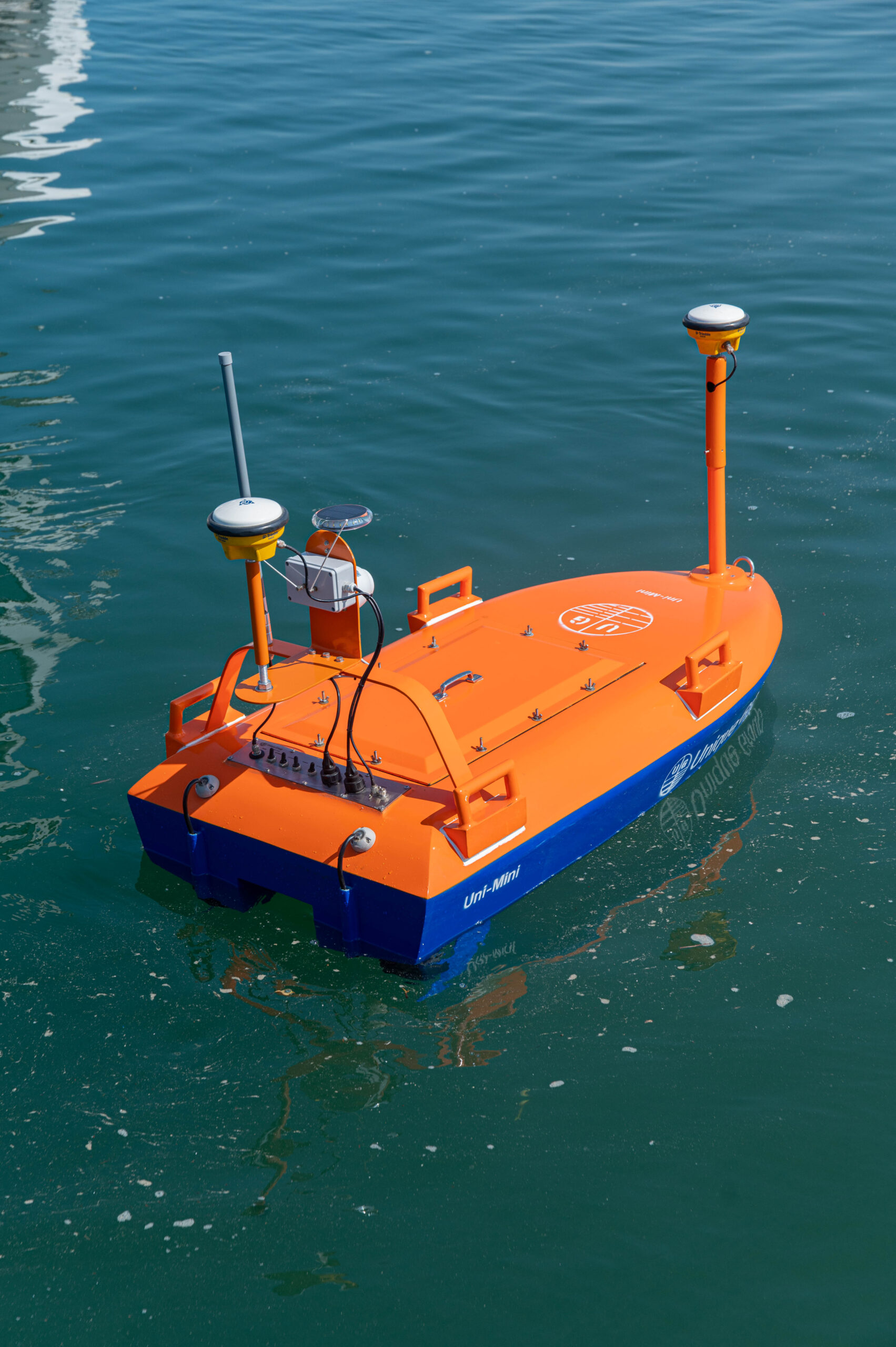

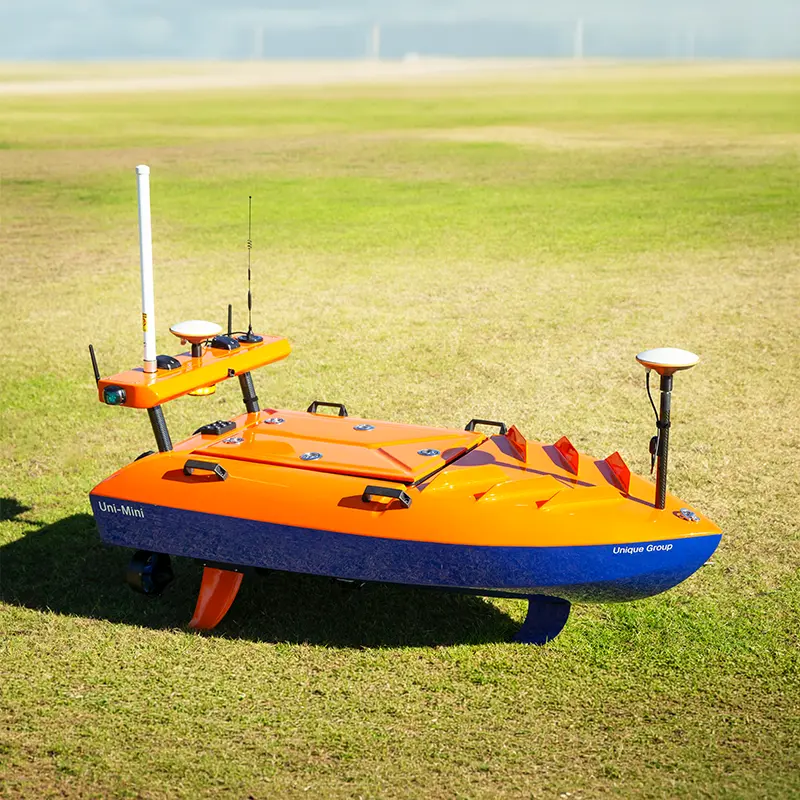

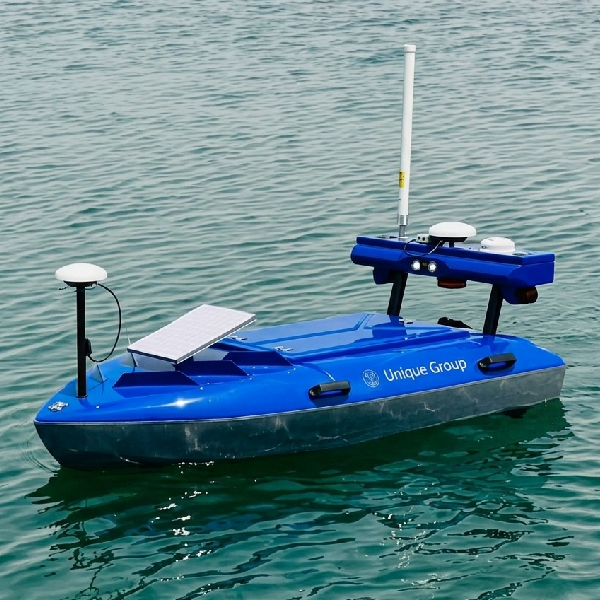

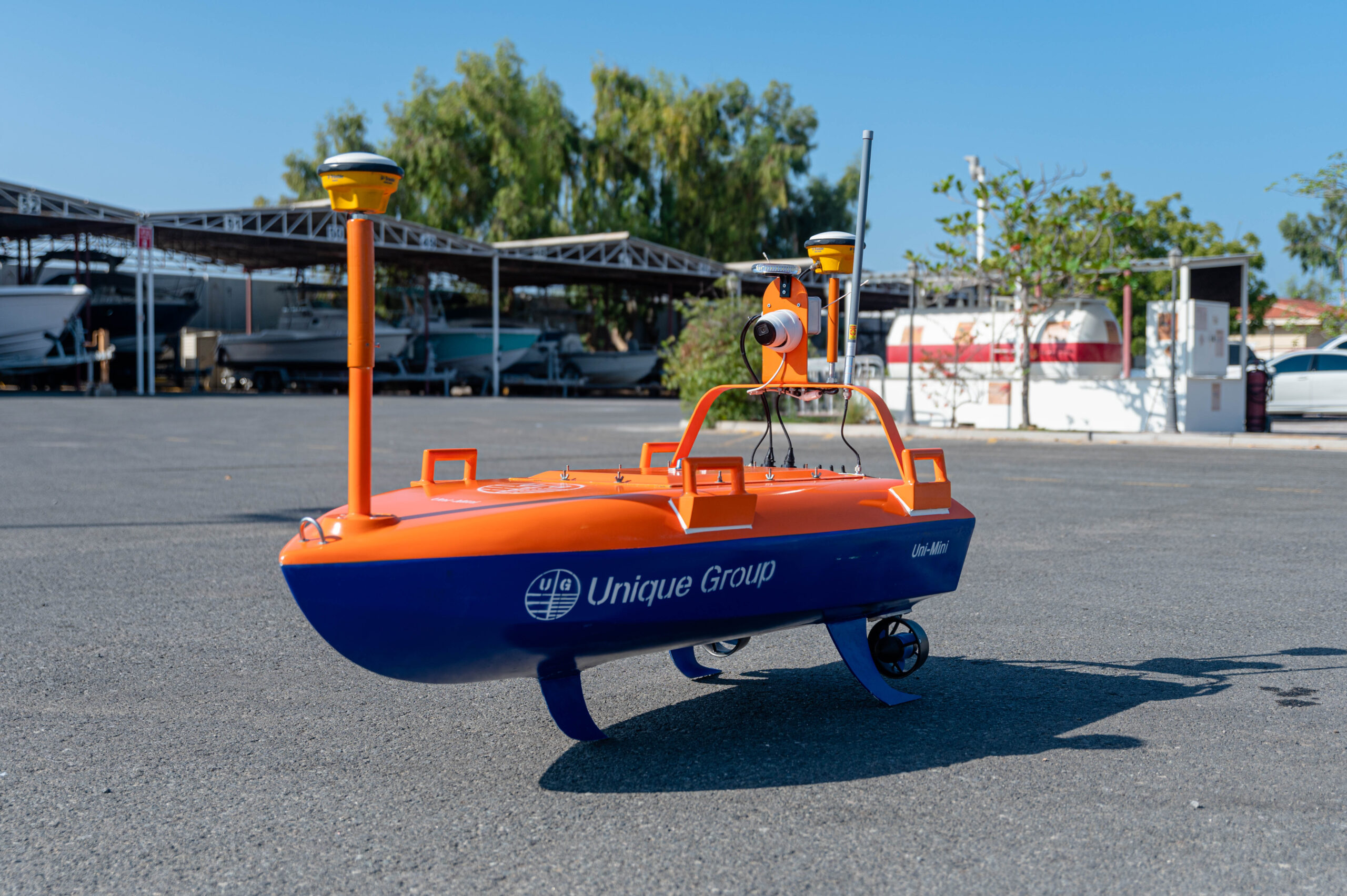

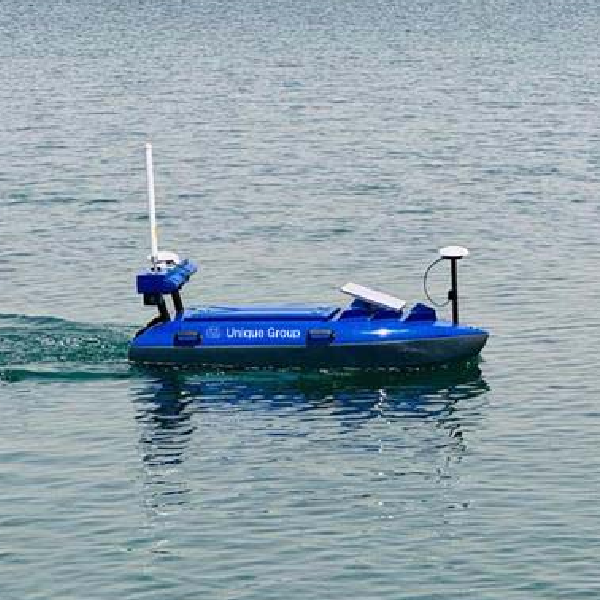

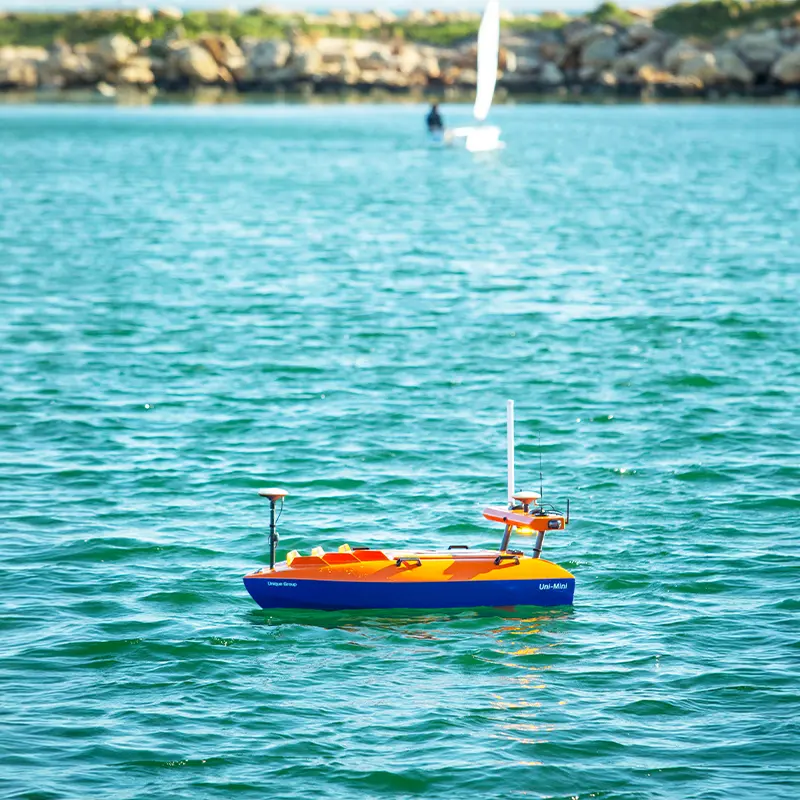

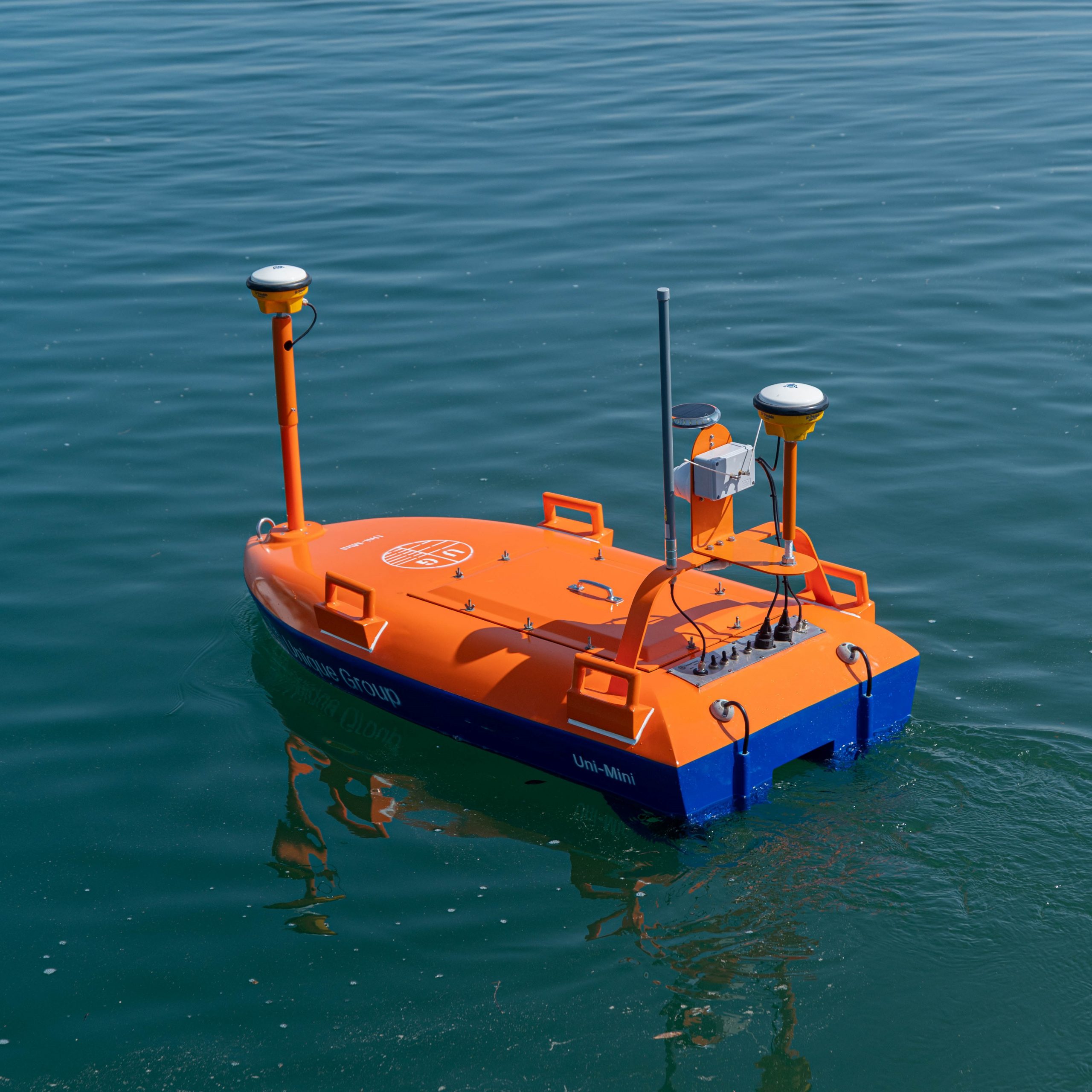

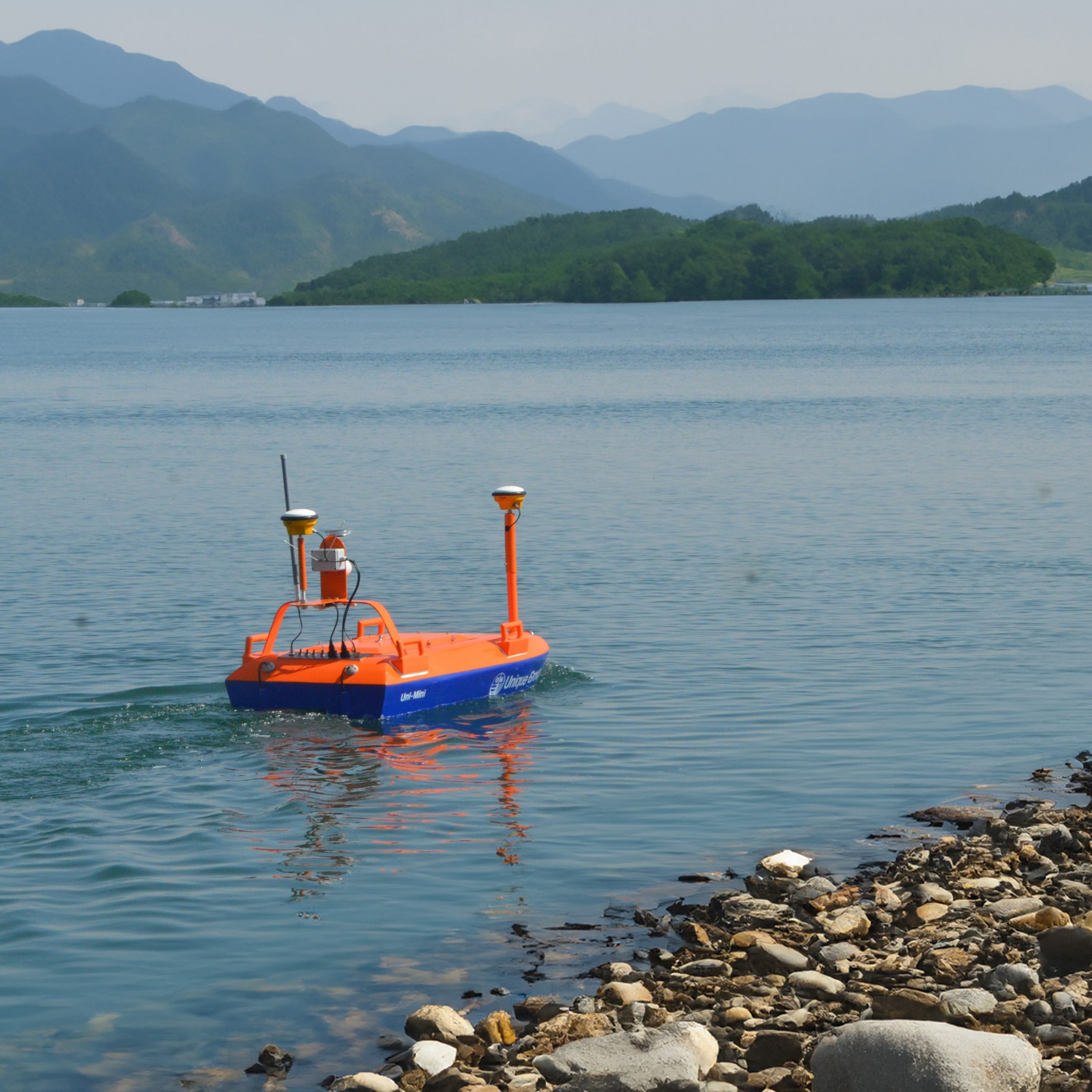

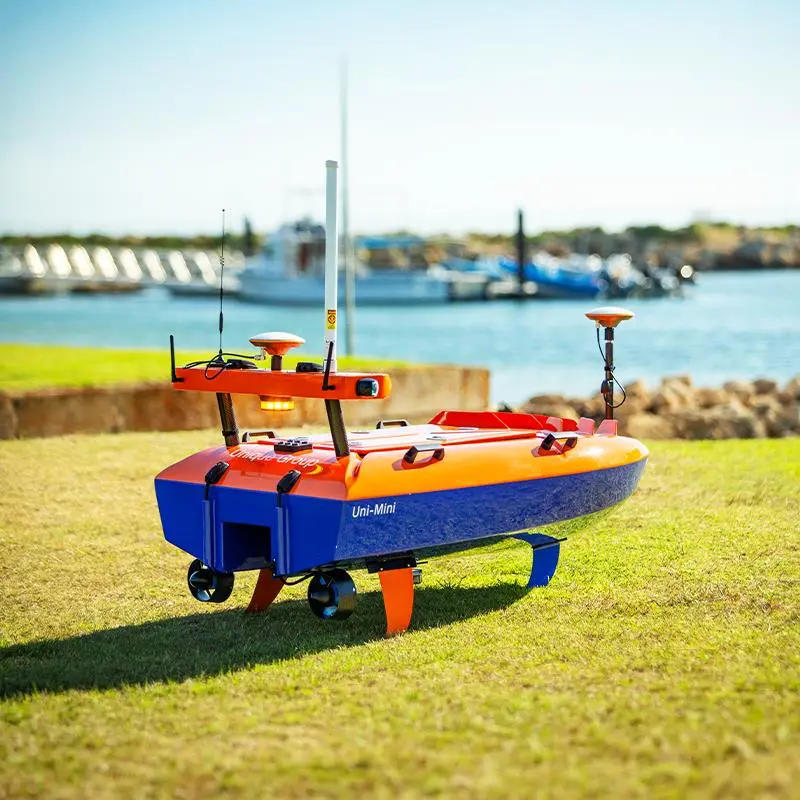

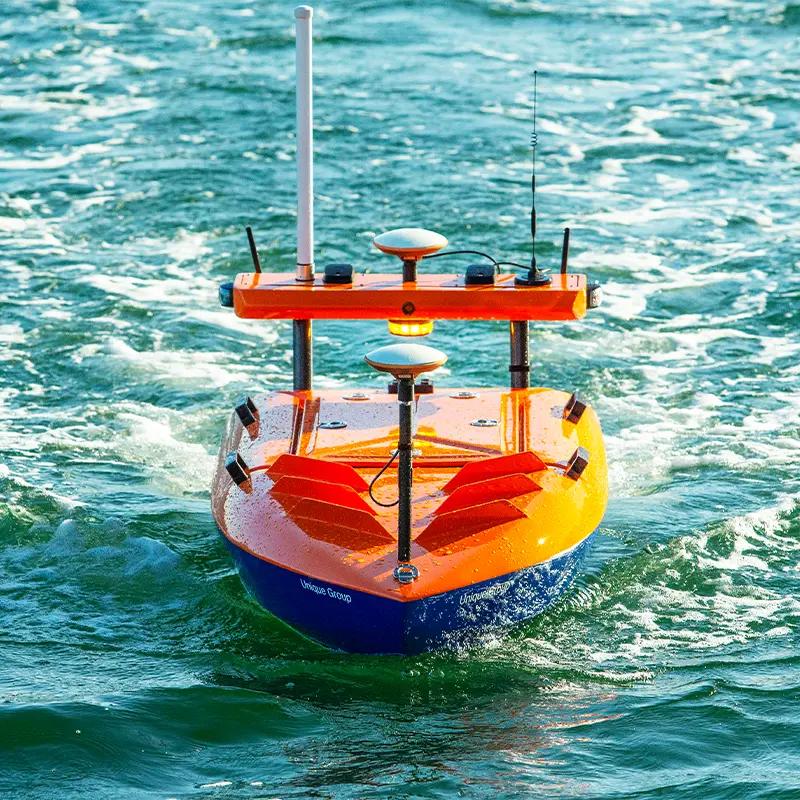

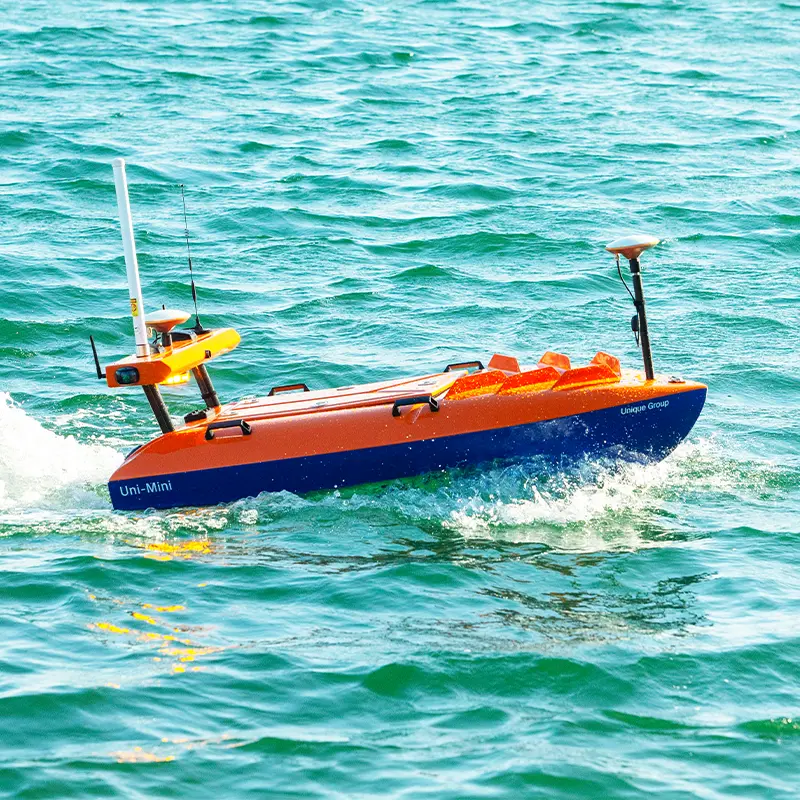

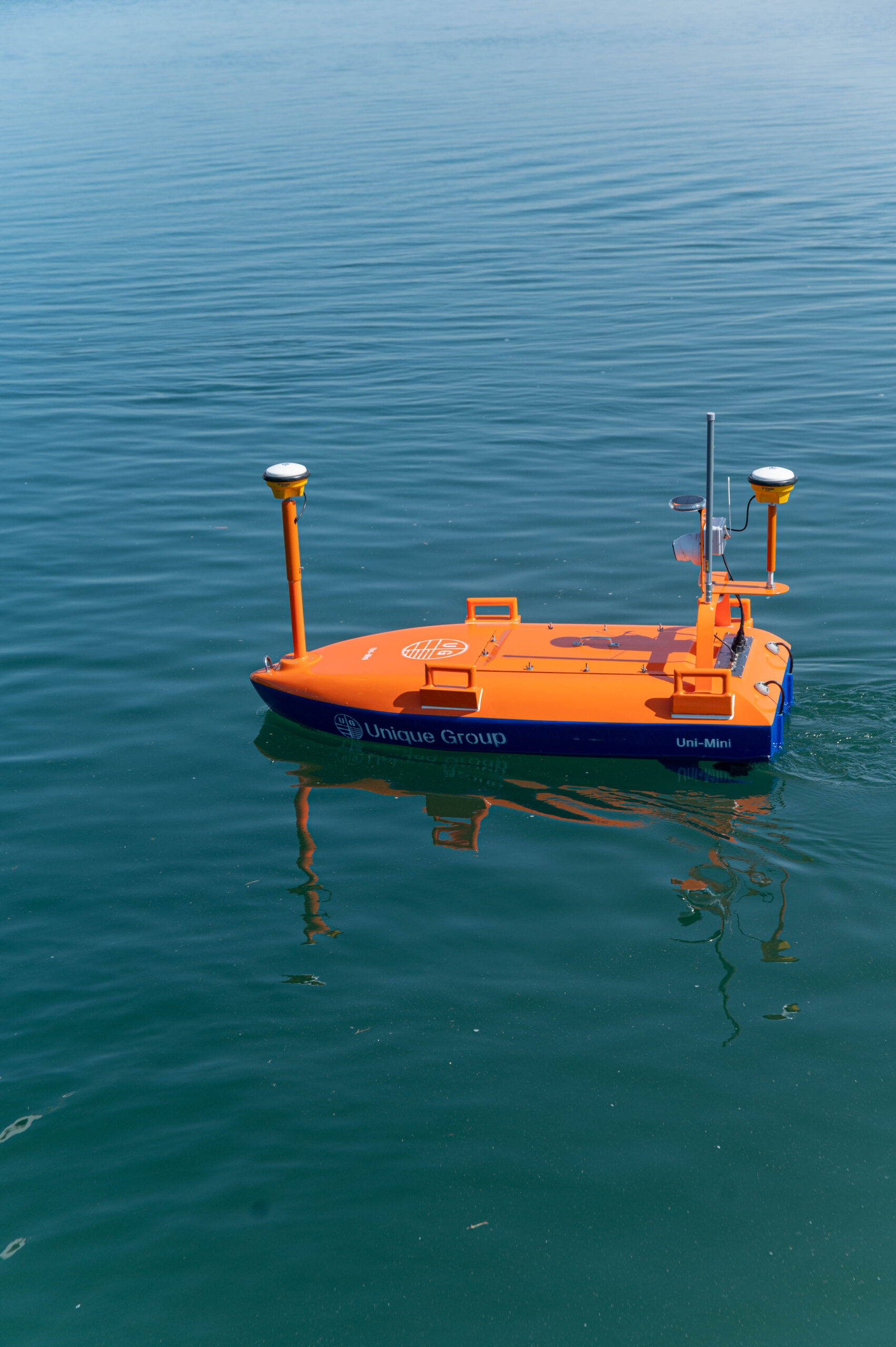

The Uni-Mini USV is a compact and lightweight vehicle which can be used in the shallow area survey. With a facility to integrate with the choice of transducer and GPS system. The Uni-Mini can perform all the survey tasks with minimal effort and manpower. The features enable the user to perform all hydrographic survey operations from land with minimal to low risk levels.

>> Learn more here

Features

Length: 1.675m

Beam: 0.784m

Weight: 65 kgs

Survey Speed: 3 to 5 knots

Endurance: Up to 6 hours (at 3 knots)

Specifications

Availability

,

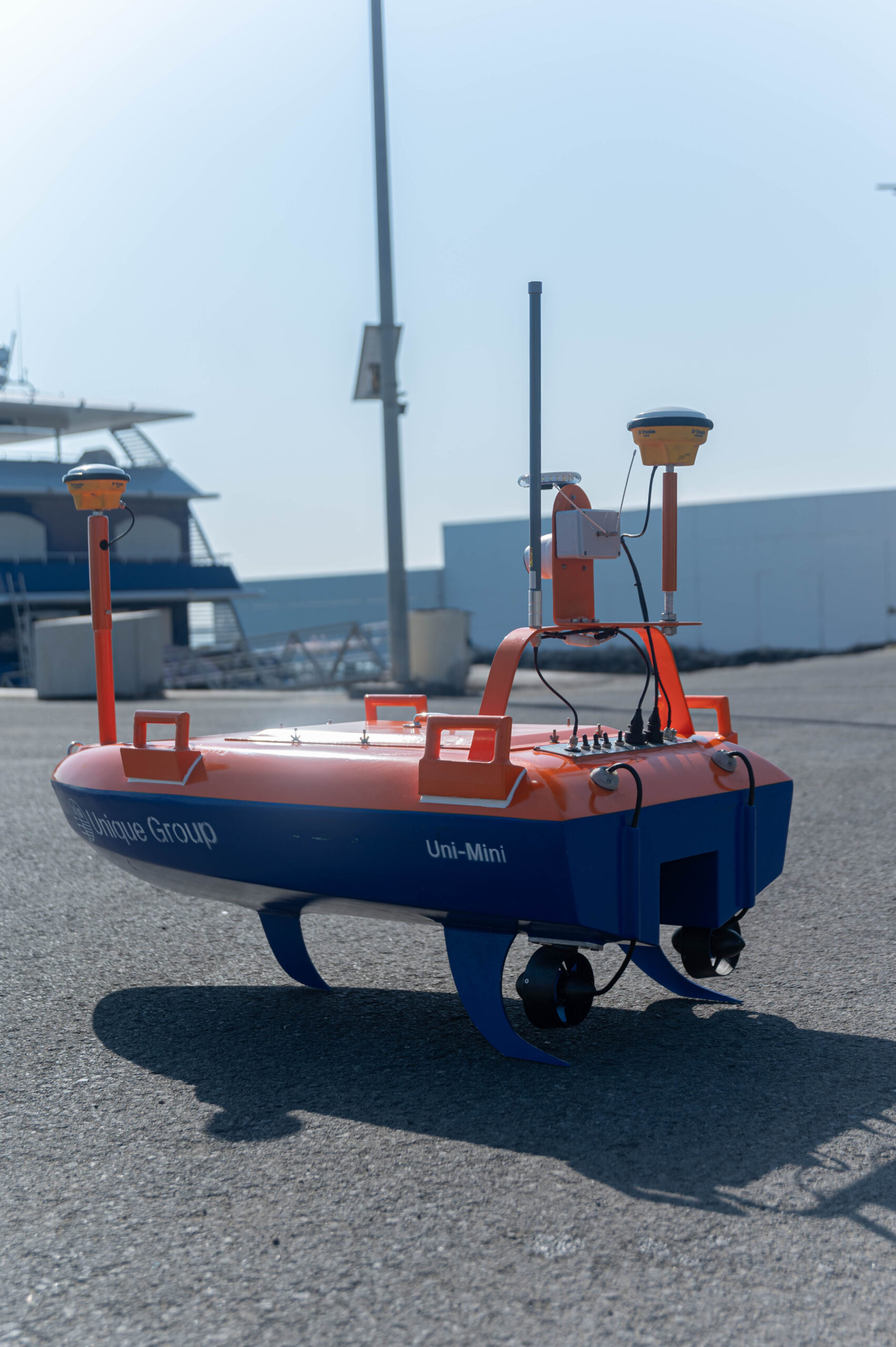

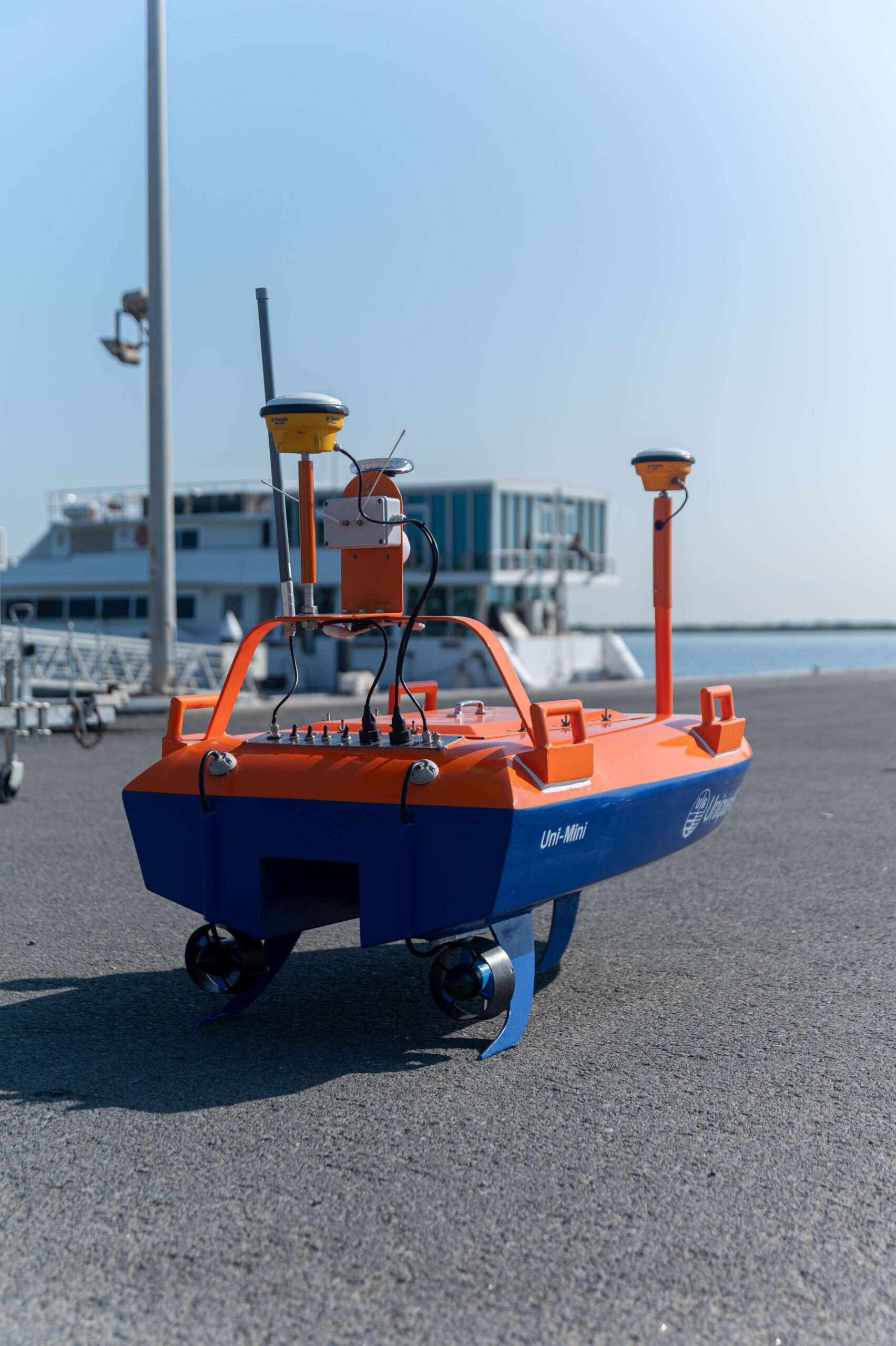

Motor: 2 X brushless DC thrusters

Battery Packs: 1 X 24V 78Ah Li-ion battery

Steering: Differential

Ground Control Unit: 900MHz (433MHz using Futaba controller)

Remote antenna: Omni directional

Remote range: 2 Kms (Line of sight)

Applications

Hydrographic Survey

Coastal and Harbour Monitoring

Habitat Mapping

Seabed Mapping and Classification

Data Harvesting

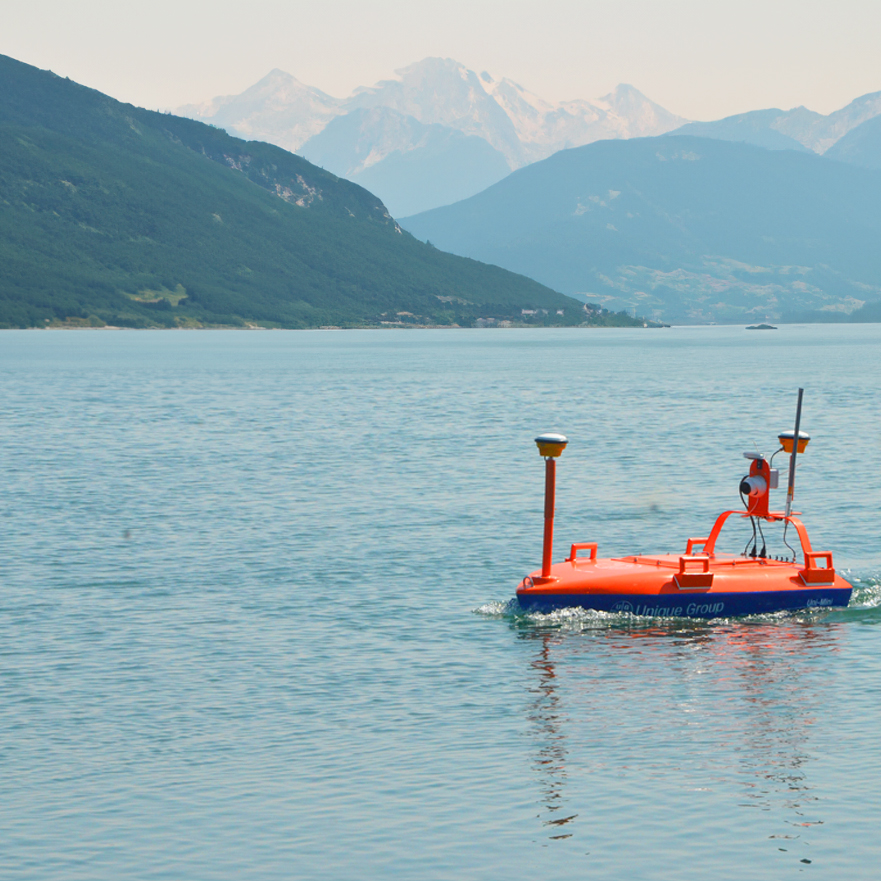

Survey of freshwater reservoirs where use of petrol and diesel engines is to be avoided
