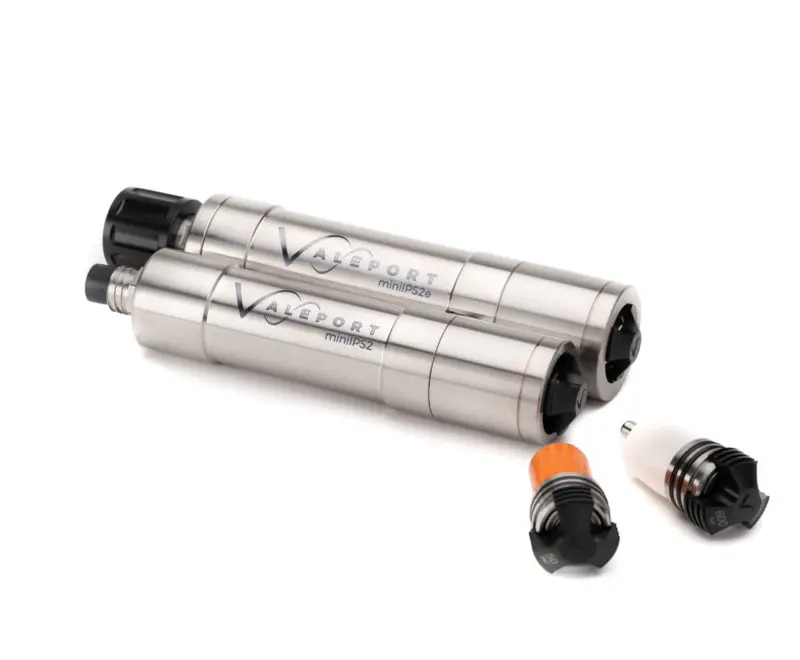

Valeport miniIPS2 : Intelligent Pressure Sensor

The miniIPS2 is a precision underwater pressure sensor with an accuracy of 0.01%FS and can provide a data rate of up-to 100Hz. Key to this design is the unique interchangeable pressure module that allows customers to change pressure transducers for maximising operationally specific depth requirements. This innovative pressure module, with integral calibration, can be changed in a couple of minutes without opening the instrument and is available in 0.01% accuracy, available in 10, 20, 30, 50, 100, 200, 300, 400 and 600 BAR variants. This is a cost-effective solution for offshore engineers, vehicle pilots, and other operators who require highly accurate depth information in real time, combined with the knowledge that testing to the standard ISO 13628-6:2006 (Q2 Levels) for vibration and shock has been attained. The miniIPS2 is compatible with Valeport’s MIDAS BathyPack and BathyLog software, allowing the depth data to be continually updated for Density variations in the water column.

Type: Temperature-compensated piezo-resistive

Range: 10, 30, 50, 100, 300 or 600 Bar

Accuracy: 0.01% FS

Resolution: 0.001% FS

Housing: Titanium (6000m rated)

Offshore survey

Oceanographic survey

Underwater monitoring
